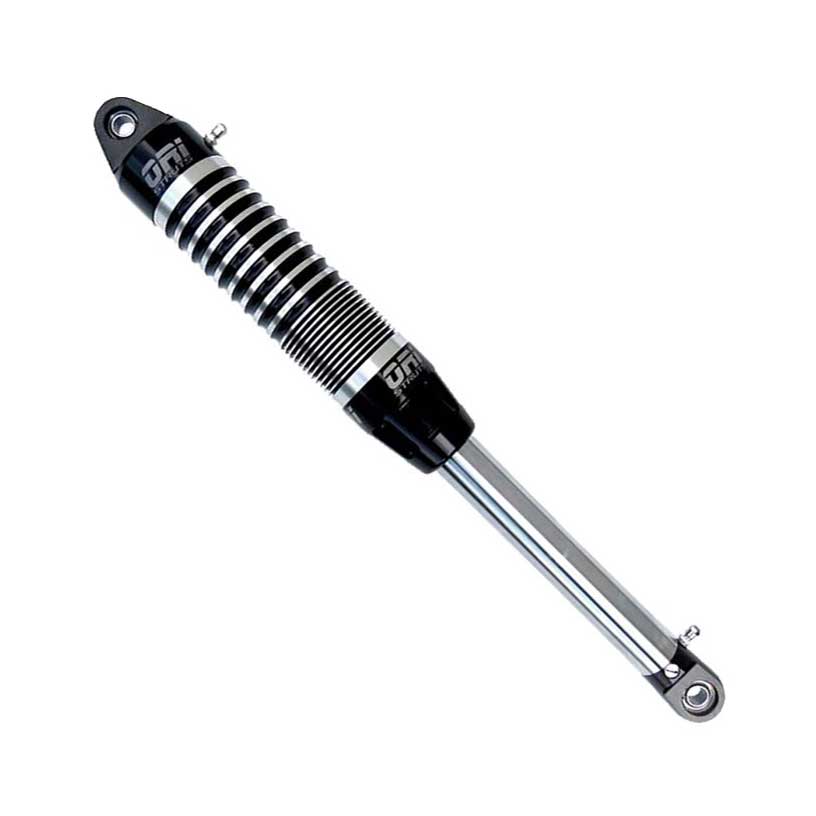

ORI STX Strut - In Stock!

The ORI STX Strut is a Top Choice among many Off Road Enthusiasts with an emphasis on it's amazing performance and unparalleled Stability in the Off Road Rock Crawling and Ultra 4 Racing Categories.

In most applications :

• No Limit Straps or Bump Stops are Required
• No Changing Springs or making Internal Valving Adjustments
• Average Weight Savings of 44 lbs when switching from Coilovers (set of 4)
• Typically can fit 2" Longer ORI Struts Compared to Coilovers

STX Specs:

• Tunable Dual pressurized chambers – lower chamber is pressurized to achieve stability and help prevent unloading. The upper chamber is pressurized to set ride height
• 3 stage compression damping –
  • 1^st stage – compressed nitrogen
  • 2^nd stage – 5W Spectro Golden Cartridge Fork Fluid
  • 3^rd stage – 1” hydraulic bump stop
• High load capacity – 1900lbs per strut
• Compact and lightweight
• 7 position externally adjustable rebound damping
• End of stroke cushioning
• Cooling fins - Improved design for heat dissipation
• Internal hardened chrome steel cylinder
• Spherical bearings for 1/2" and 5/8" mounting options
• 5000 psi seals
• Anodized outer coating – Prevents corrosion
• Made from high grade billet 6061 aluminum
• Stainless steel internal components, Chrome Plated Piston Shafts

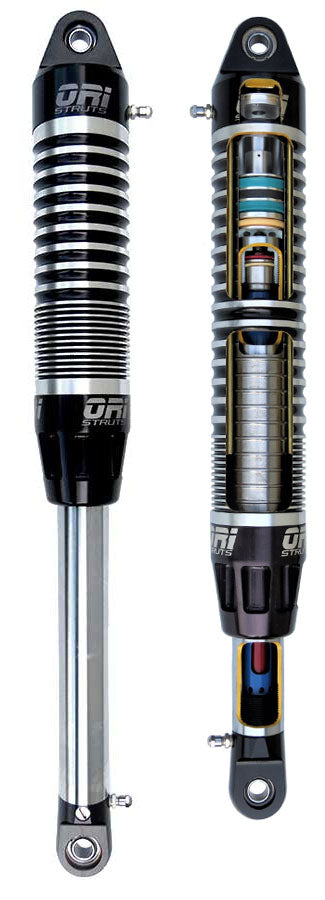

STX struts feature unique dual nitrogen charged chambers for unmatched stability in off-road suspension and are fully tunable to obtain any level of stability, ride height, and spring rate desired simply by adjusting nitrogen pressure in the upper / lower chamber.

Built into the compression damping is a 1 inch hydraulic bump stop, high flow oil return passageways, and a velocity sensitive compression valve that helps prevent bottoming out on hard hits to make for a 3 stage compression damping stroke.

With a compact 3.2" body, 2" piston, and a 1.75" diameter piston shaft, the struts are compact enough to fit under most builds, and strong enough to hold up in harshest conditions. They come in a variety of standard lengths (8"- 20"), and can be custom ordered up to 30" travel length.

In many situations you will be able to save 44 lbs and gain 2" of Travel when switching from popular Coilover Shocks to ORI Struts, due to it's compact design.  Refer to the ORI Sizing Chart to match up Compressed / Extended lengths against your coilovers to verify.

Availability

Standard Sizes are typically in stock : 12", 14", 16", 18"

Custom Sizes such as 8", 10", 20", 22", 24" are available to be ordered.

Please contact us for current availability prior to placing your order

Please place your order in pairs of (2) Struts or sets of (4) Struts.  Contact us before placing order for a Single Strut as availability may be limited.

Misalignment Spacers

Free Misalignment Spacers are included in your order, Standard Size is 1/2" x 1.6".  Other sizes may be specified subject to availability.

1/2" x 1.60" - PF-075 (Typical Coilover Mounting Width - Default)

1/2" x 1.50" - PF-218 (Typical Air Shock Mounting Width - On Request)

5/8" x 1.60" - PF-076 (Typical Coilover Mounting Width - Default)

5/8" x 1.50" - PF-306 (Typical Air Shock Mounting Width - On Request)
